6-Gang-Marine-Wippschalterfeld

SKU: HY0405

$35.06

  • Intelligente, berührungsgesteuerte USB-Ladeanschlüsse
  • All-in-One 6-Gang Marine Control Hub
  • Erweitertes Schaltkreisschutzsystem
  • Marinetaugliche Haltbarkeit und Sicherheitskonformität
  • IP66 Wasserdichte Konstruktion
  • Anpassbare Schalterbeschriftung

Specification

Abmessungen
18 x 11 x 9 cm.
Material
ABS-Kunststoff.
Maximale Ausgangsleistung
240 W.
Spannung
DC 12 V 20 A, 24 V 10 A.
Elektrische Lebensdauer
10.000 Ein- und Ausschaltzyklen bei Volllast.
Voltmetermessung
6 – 28 V.

Ausverkauft

Save Extra 24% with our code.

5-7 Days Fast Free Shipping

Free 30-Day Returns

12-Month Warranty

Security Payment With

  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Klarna

$35.06

Description
Specification
File Download
Request Bulk Quotes

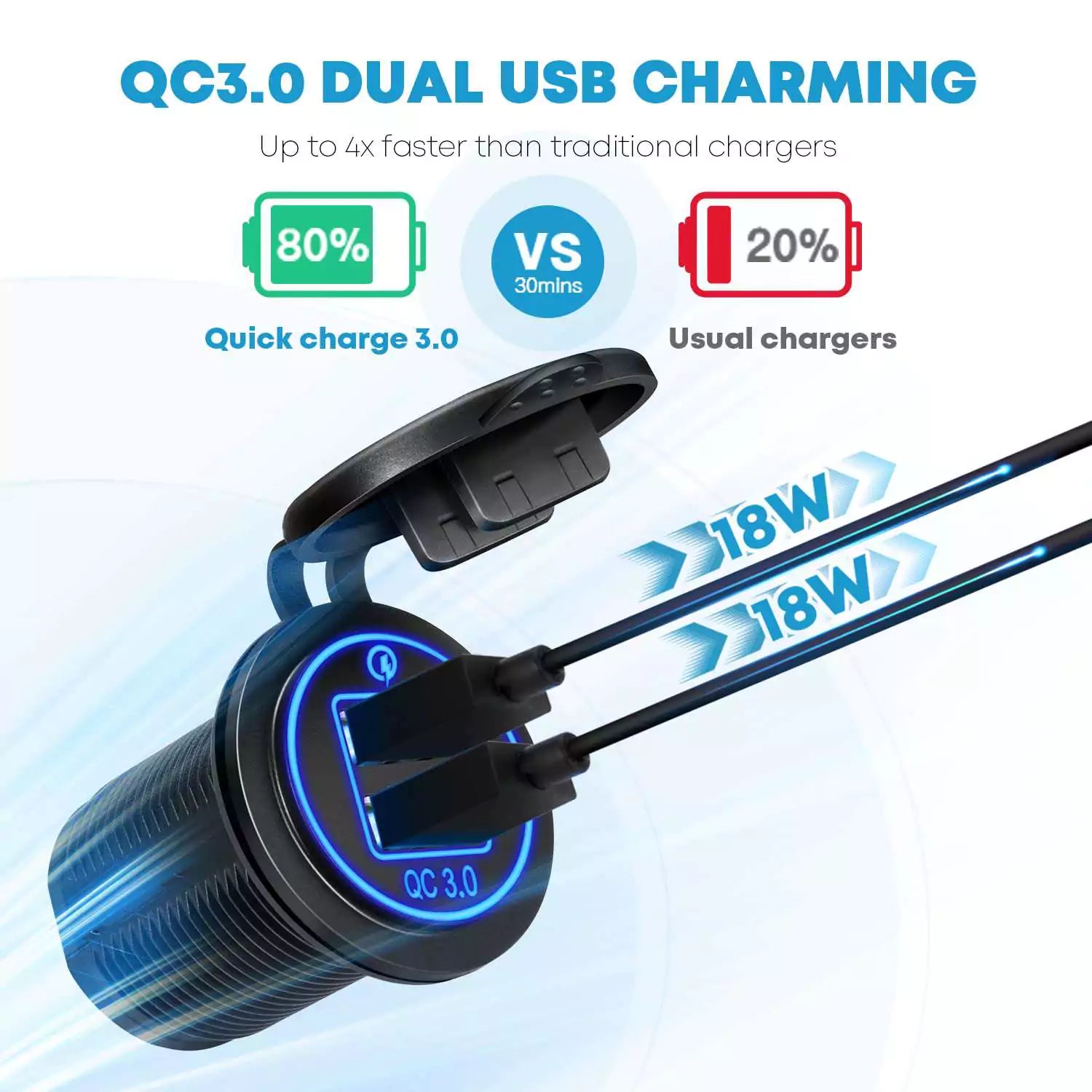

  • Intelligente, berührungsgesteuerte USB-Ladeanschlüsse: Unser 6-fach-Boot-Wippschalter-Panel optimiert die Energieeffizienz mit einem verbesserten berührungsempfindlichen USB-Schalter und ermöglicht so die sofortige Kontrolle des Stromflusses. Die beiden USB-Anschlüsse (QC 3.0-kompatibel) können aktiviert oder deaktiviert werden, um Batterieentladung und Überladung zu verhindern. Dieses Panel ist ideal für den Einsatz auf See, wo Energieeinsparung entscheidend ist.

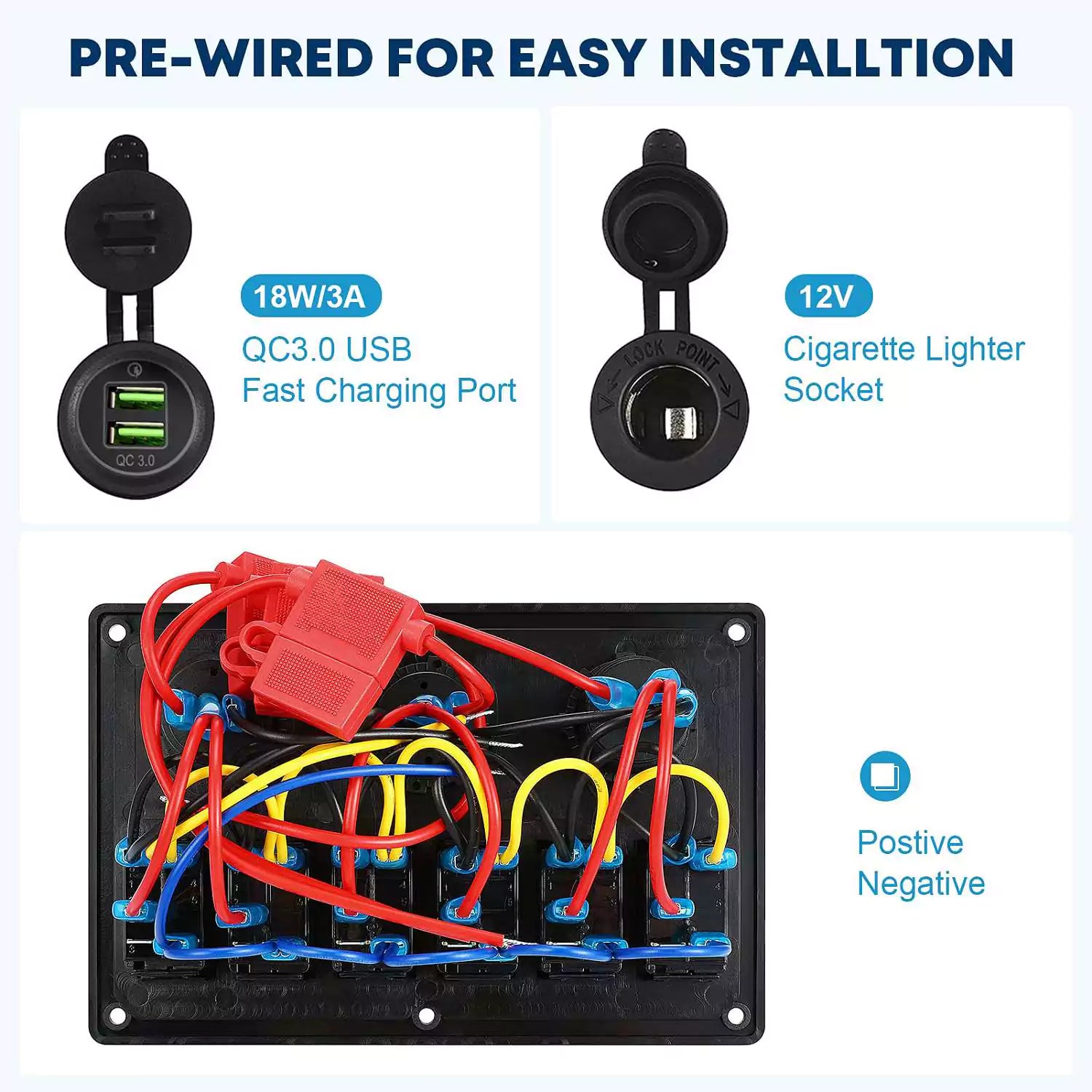

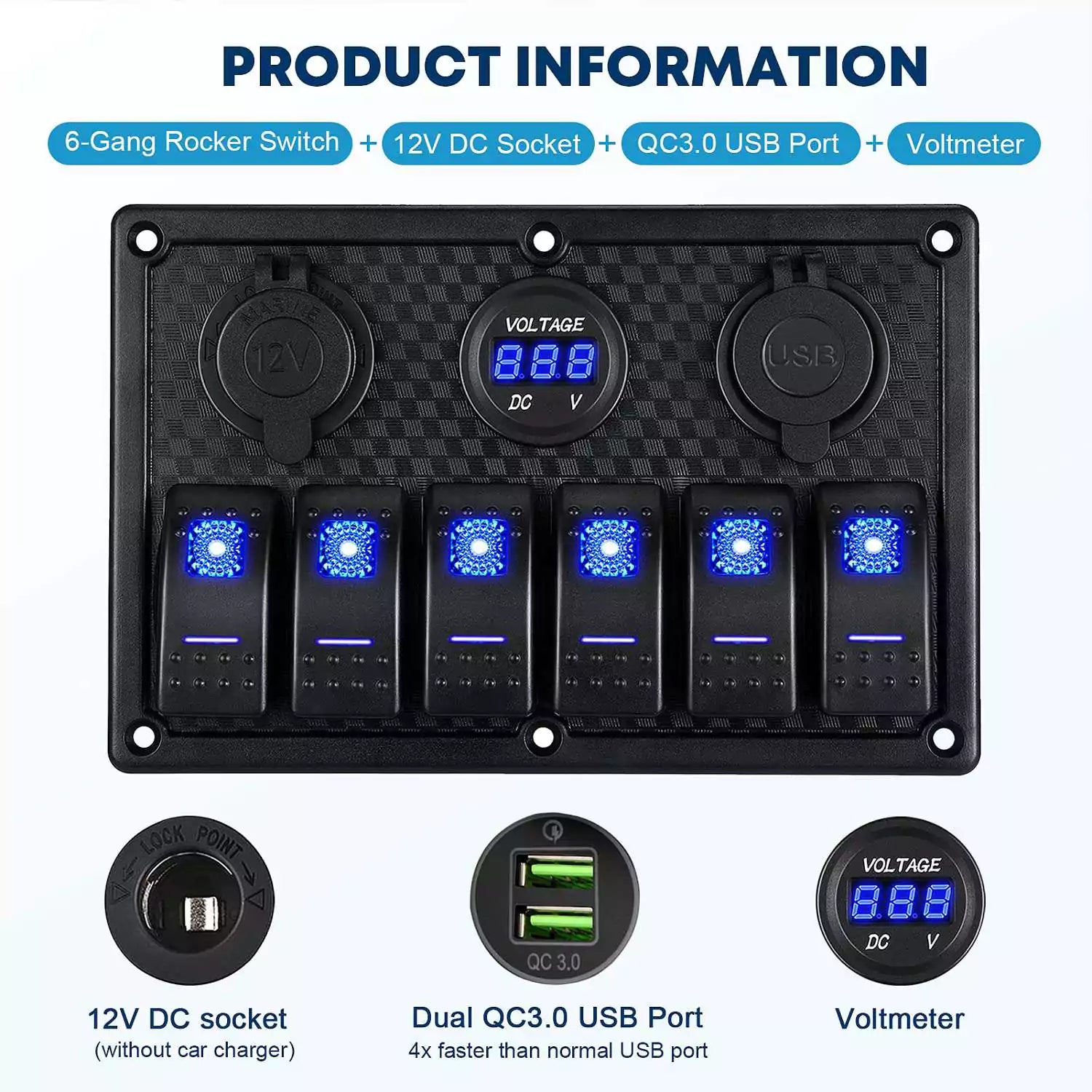

  • All-in-One 6-Gang Marine Control Hub: Optimieren Sie die elektrische Steuerung Ihres Bootes mit einem multifunktionalen Wippschalterfeld mit sechs hintergrundbeleuchteten Wippschaltern, einer 12-V-Zigarettenanzünderbuchse und einem hellblauen LED-Voltmeter. Überwachen Sie mühelos Spannungspegel und verwalten Sie Stromkreise für Beleuchtung, Pumpen, Zubehör und mehr – alles von einer einzigen, zentralen Einheit in Marinequalität.
  • Fortschrittliches Schaltkreisschutzsystem: Ausgestattet mit austauschbaren 15-A-Sicherungen schützt dieses Panel vor Kurzschlüssen, Überlastungen und Verpolungsfehlern. Der integrierte Überstromschutz sorgt dafür, dass Verkabelung und angeschlossene Geräte auch bei versehentlichem Fehlanschluss intakt bleiben. Die Echtzeit-Spannungsanzeige sorgt für die Sichtbarkeit und sofortige Kontrolle des elektrischen Zustands.
  • Marinetaugliche Haltbarkeit und Sicherheitskonformität: Hergestellt aus flammhemmendem ABS und zertifiziert nach CE/ROHS-Standards, hält dieses korrosionsbeständige Schaltpanel für Boote den rauen Bedingungen auf See stand. Vorverdrahtet mit deutlich gekennzeichneten Anschlüssen vereinfacht es die Installation und reduziert die Einrichtungszeit. Strenge Qualitätskontrollen garantieren Zuverlässigkeit, unterstützt durch ein wasserdichtes Design für den Langzeiteinsatz.
  • IP66-Wasserdichtigkeit: Gummidichtungen, wasserdichte Anschlussabdeckungen und eine vollständig abgedichtete Konstruktion schützen vor Feuchtigkeit, Spritzern und Staub. So genießen Sie auch in feuchten Umgebungen ein sicheres Gefühl und verlängern gleichzeitig die Lebensdauer der elektrischen Komponenten Ihres Bootes.
  • Anpassbare Schalterbeschriftung: Personalisieren Sie Ihr Panel mit den mitgelieferten DIY-Aufklebern für eine klare, benutzerdefinierte Beschriftung. Passen Sie jeden Wippschalter (z. B. „Bilgenpumpe“, „Navigationslichter“) an Ihre Konfiguration an. Das verbessert die Benutzerfreundlichkeit und reduziert Bedienfehler bei hohem Druck auf dem Wasser.

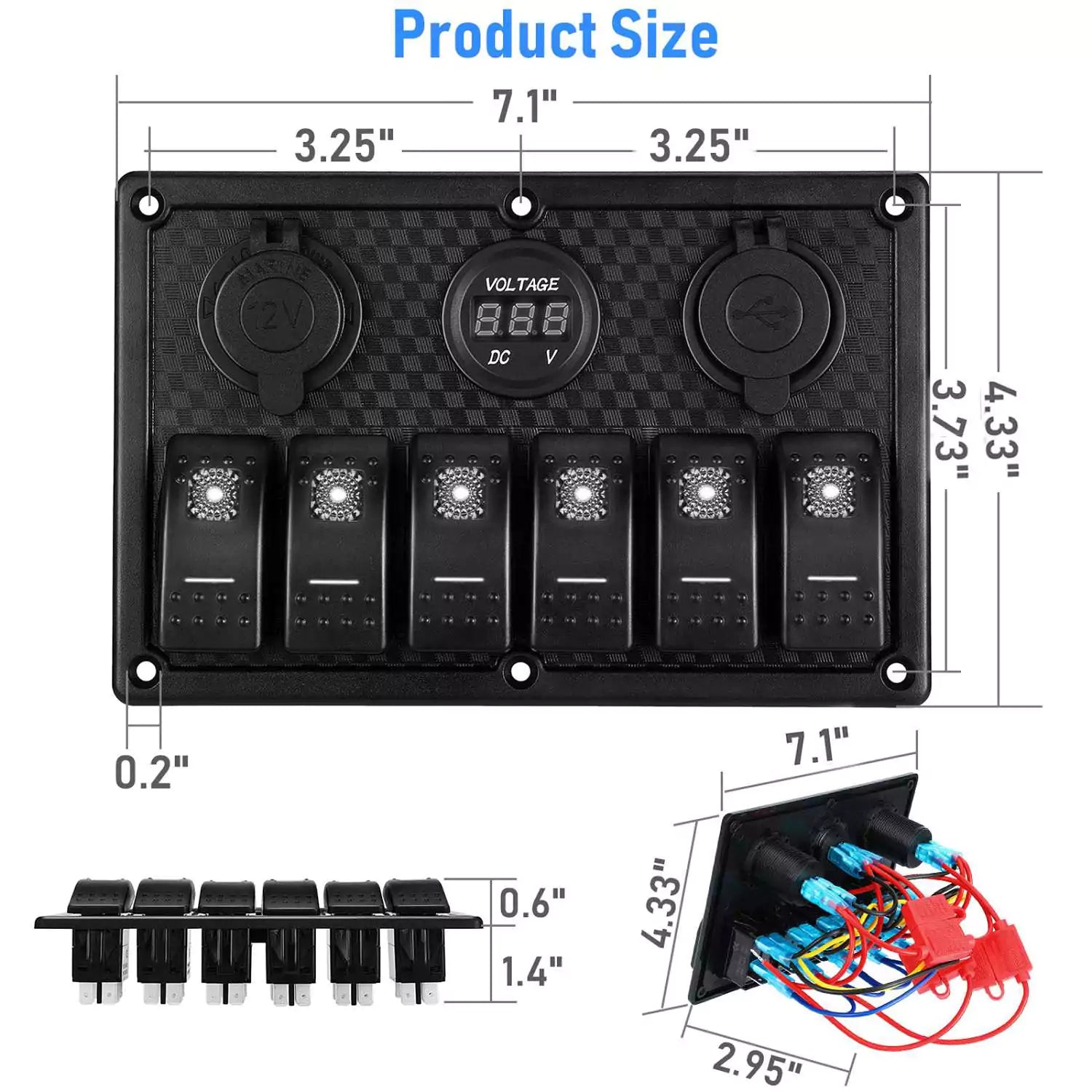

Abmessungen: 18 x 11 x 9 cm.

Material: ABS-Kunststoff.

Maximale Ausgangsleistung: 240 W.

Spannung: DC 12 V 20 A, 24 V 10 A.

Elektrische Lebensdauer: 10.000 Ein- und Ausschaltzyklen bei Volllast.

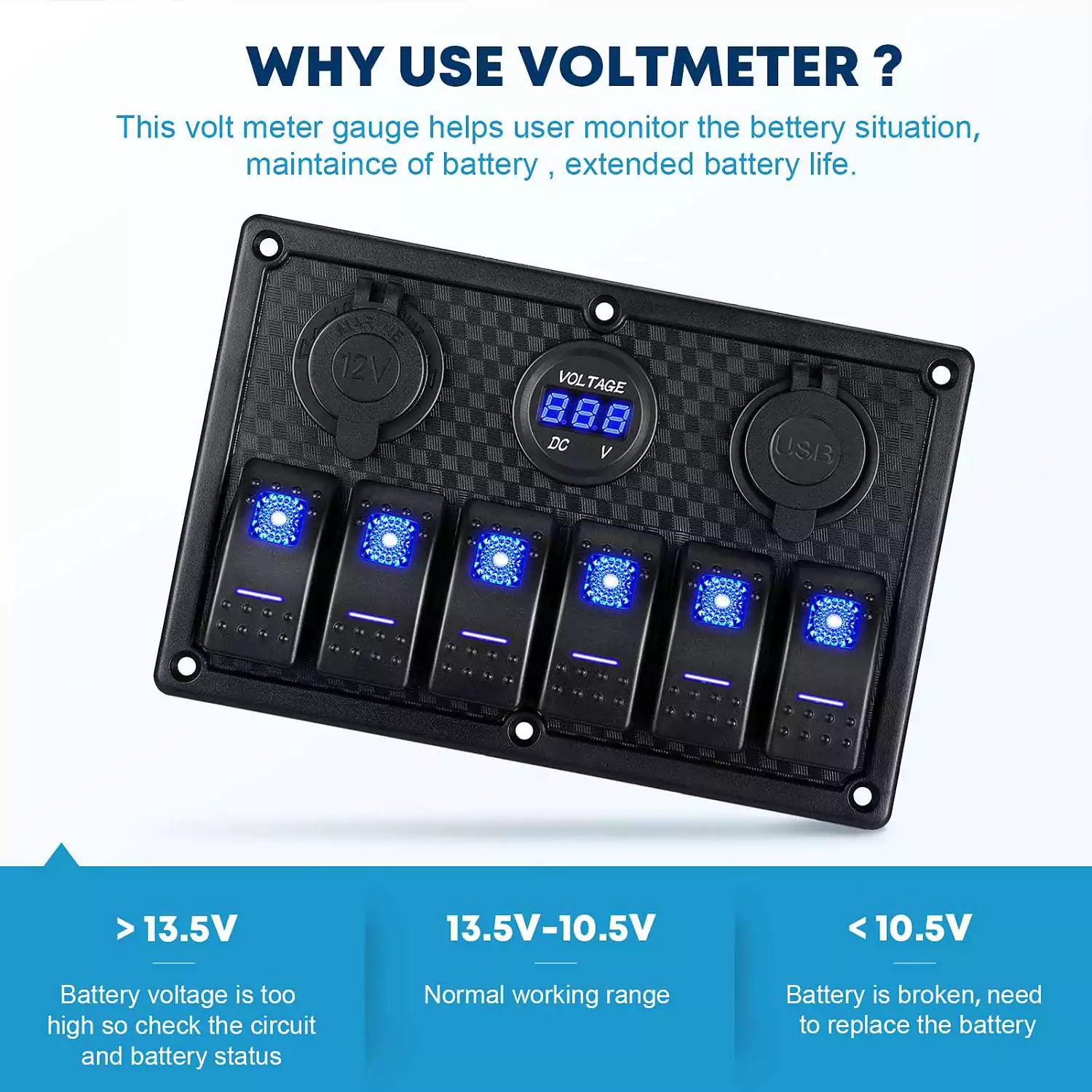

Voltmetermessung: 6 – 28 V.

Ausgangsspannung der Zigarettenanzünderbuchse: 12 – 24 V.

Betriebstemperatur: -25 °C bis 80 °C.

Need to purchase more? Please contact: Frank@kohree.com

Customers praise this marine rocker switch panel for easy installation, professional appearance, and practical features like battery voltage display and USB charging. Many note it's "pre-wired" and works well on boats, RVs, and vehicles. However, some mention durability concerns in saltwater (lasting ~1 year), confusing instructions, and non-marine grade connectors. Price is slightly higher than competitors.

  • Perfect fit and looks great. Battery display is an incredible addition.
  • Easy to install, pretty much all pre-wired. Everything's working great.
  • Really sturdy and neat. Adds a touch of modern style.
Quality (positive)Installation (positive)Panel (positive)Switches (positive)Boat (positive)
  • 5 stars: 16 (84%)
  • 4 stars: 3 (16%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
n
nick collins
I change these yearly in a salty water setting.

These hold up for around a year in salty water, but then they start to break down. I'd love if they lasted longer. I'm willing to pay extra for better quality!

R
RST
Very nice panel.

This rocker panel is high quality, way more water-resistant than that cheaper one that didn't last past my one rainy visit to the Keys. It's user-friendly, good-looking, and the vendor is awesome!

t
thomas graves
Good product for the value

It's a solid product at a fair price. I replaced the far-right switch for a momentary rocker for my motor trim. Would definitely but it again for my next boat.

K
KSG
Universal compatibility

Easy to install, it's pretty much all pre-wired. So far, everything's working great. I've got it on my jeep for lights and other stuff, and I reckon it'd fit a bunch of different uses.

w
william powell
Great rocker panel

It is easy to install and operates smoothly. I've got it set up on my pontoon, and it's been holding up well against water and weather. It works great, and the mostly pre-wired setup makes for a simple install.

D
Dr. C.
easy installation

It is very easy to install this panel and it looks great too. I made a few minor tweaks to tailor it to my preferences. Definitely recommend this switch panel to anyone in need.

T
Tameka Jackson
Works well and looks great

Just what we were looking for. It looks great and functions well. The price is fair too. If only the plastic part was a bit more sturdy, but no major issues. It's a good product overall. Would buy it again.

T
Tommy Mulcahy
Suitable for light-weight panels

I replaced my RV's bulky, old-school switch panel with this sleek and lightweight option. It's the perfect fit and looks great. The battery display is an incredible addition, making it super easy to monitor power levels. If you're looking to upgrade your RV's electrical setup, this panel is a must-have.

R
Ravi
Look good, work well

Drilling a hole and setting up all the switches might be tough for some, but once it's done, it gives off a really professional vibe, and I'm a fan of that. I'm a fan of the blue light on the voltage gauge.

B
BA
Durable and versatile panel

It's not bad, but a bit pricier than similar products out there. I run all my 12v lights through one of these units, and I really love that it shows the battery output. It's an excellent product, and I highly recommend it.

t
todd
Good Quailty, built to last

It was easy to install, and I'm really pleased with the product. If I encounter any issues, I'll update my review. The product itself seems to be well-made and worked as described, but the instructions are a little confusing.

J
Jacob W. Perron
Ready-to-use wiring with a fuse to divide switches into 3 separate circuits.

I disliked that labeled "marine grade" for the pre-wired connectors didn't come with sealed thermo-resin heat shrink. That's easy for making adjustments, but it could lead to issues in damp conditions if you don't reseal them yourself. Fortunately, the other features are just as advertised and quite nice.

m
mike
Buy this! No doubt

This is awesome. I've just finished setting up the sound system and navigation lights to my boat. Next up, I'm adding a bilge pump, anchor light, and some interior LEDs. I had to do a lot of rewiring and watched plenty of YouTube tutorials. But it turned out to be quite straightforward, even though I don't have any experience with wiring.

J
John Paul Bilderback
Does the job

I got this switch panel to redo the wiring on my boat. So far, I'm happy with it and it's doing what it's supposed to do. We'll see how it stands up in a marine environment. The build quality is impressive for the price. The switches are all aligned, evenly spaced, and functioning perfectly.

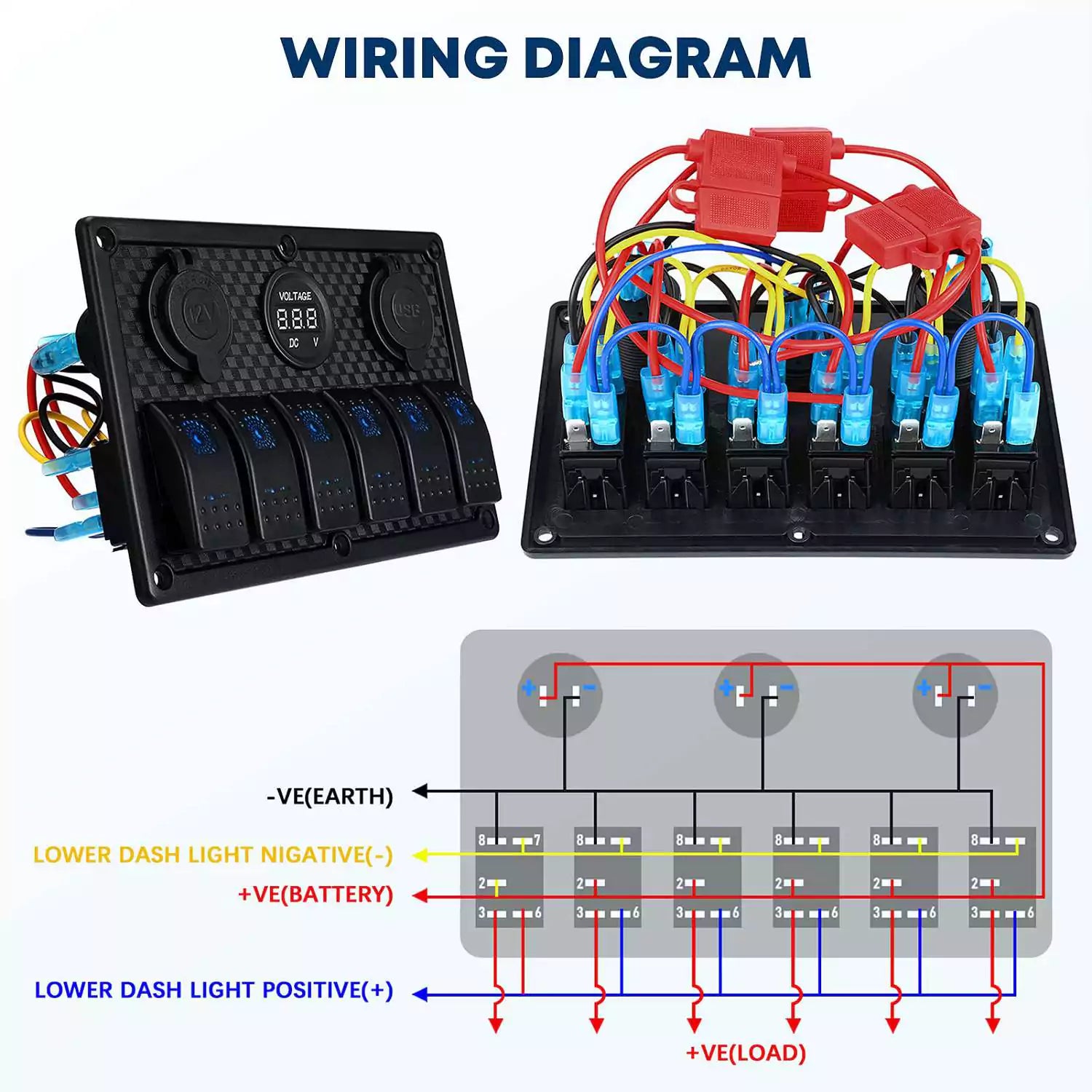

As for the wiring, it's set up well if you're using relays. You just need to connect the three positive wires to a 12V source, ground the single grounds, and wire the switches to the relay triggers. If you're not using relays, like me, you might want to rewire it a bit. I gave each of the voltage meter, power socket, and USB jacks their own dedicated, fused 12V lead. Originally, these wires powered two switches, which is fine for relays or low-draw loads.
Since I'm not using relays for most things, I ran 12V directly to each switch from my fuse panel, separating each circuit and putting it on its own fuse. I also separated the grounds for the switches, running six individual grounds back to the ground point under the helm. That way, all the current for all the circuits isn't flowing through a tiny 16-gauge ground wire.
I routed the 12V lead for the lower LED lights to the switched power on my ignition switch, so they don't stay on all the time. I haven't had any issues with the terminals coming loose, so it seems like they've improved the spade connector design. If the connectors have a little tab in the middle, you need to use needle-nose pliers to press that tab and pull them off.

R
Robin Mccunn
Good stuff at a fair cost

It seems really sturdy and neat. Many panels can look tacky, but I'm a fan of this one. It's about the size of a double Din stereo and it adds a touch of modern style to my car's interior.

R
Richie Rich
Fully connected and ready for setup

I really love this new panel for my boat! The old one had finally given up after years of use and needed replacing badly. This new one is perfect - it's even better than I expected! What's more, it's got a USB port, which the old one lacked, so I don't need to carry a charging cube anymore. It's made a big improvement to our boating trips. Thanks a lot!

D
Dan L
Adjust the voltage switch for horizontal or vertical mounting

I think it's a good switch panel. The only issues I had were with the poor quality screws they provided, and I needed to carve out a bit of the voltage display to mount the panel upright. If they made it mountable in both orientations, that would be an improvement. Such a small change wouldn't require much effort to engineer.

S
Steve
Quick setup, comes with pre-installed wiring!

Everything works just like it's supposed to, and the little backlights are really cool. I put it on my boat to replace the old switch setup, and now I've got better control over the lights, the live well, and some other extras I threw in. Just a heads-up: make sure to drill the screw holes in advance for the mounting.

N
Nancy
On the water

Great value for the money. Just what I needed for our boat's makeover. It's working well and was easy to install, especially if you've got a bit of know-how. I've got this panel on the boat, replacing the old switches on the dashboard. It looks fantastic, giving my older boat a sleek, modern touch on the dash.

FAQs About 6-Gang-Marine-Wippschalterfeld

Die USB-Anschlüsse verfügen über berührungsempfindliche Bedienelemente zum sofortigen Aktivieren/Deaktivieren des Stromflusses und verhindern so eine Entladung des Akkus bei Nichtgebrauch. Die QC 3.0-Kompatibilität gewährleistet schnelles und effizientes Laden und schützt gleichzeitig vor Überladung.

Es verfügt über ein austauschbares 15-A-Sicherungssystem, Überstromschutz und Verpolungsschutz. Diese Funktionen schützen vor Kurzschlüssen, Überlastungen und versehentlichen Fehlanschlüssen und gewährleisten die Sicherheit von Verkabelung und Geräten.

Ja! Das Panel enthält selbstklebende Aufkleber zur individuellen Beschriftung (z. B. „Bilgenpumpe“). Das verbessert die Übersichtlichkeit und reduziert Fehler bei kritischen Vorgängen auf dem Wasser.
